Light Switch

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

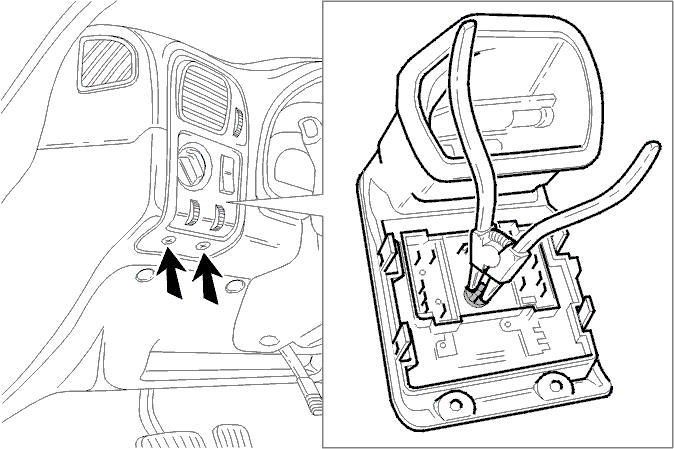

Fig 1: Light Switch Removal
GLL115322Courtesy of VOLVO CARS OF NORTH AMERICA.

Removal

Remove the light switch (two screws).

HINT: Pull forward lightly.

HINT: Pull down and forwards again.

Remove the bulb holder backwards using narrow round-nosed pliers.

Installation

Reinstall in reverse order.
