Replacing the headlamp assembly: Preparations

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

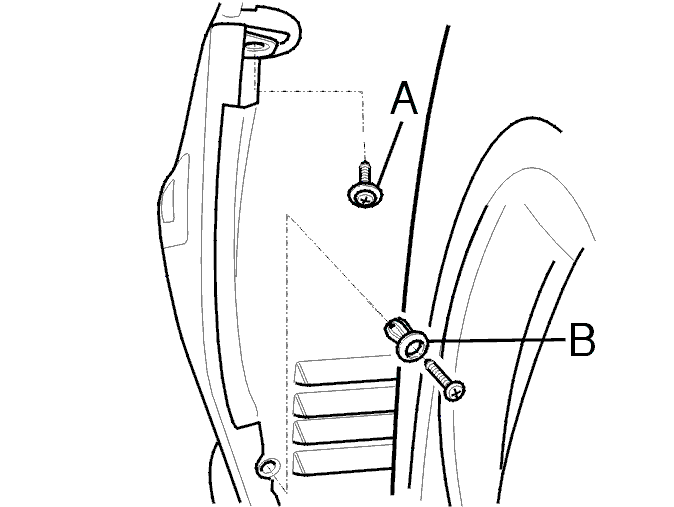

Fig 1: Screw And Plastic Clip In Wheel Arch

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 2: Removing Air Baffle

Courtesy of VOLVO CARS OF NORTH AMERICA.

The bumper is only removed on the side where the lamp is to be replaced.

Remove:

screw (A) and plastic clip (B) in the wheel arch
the air baffle under the car.

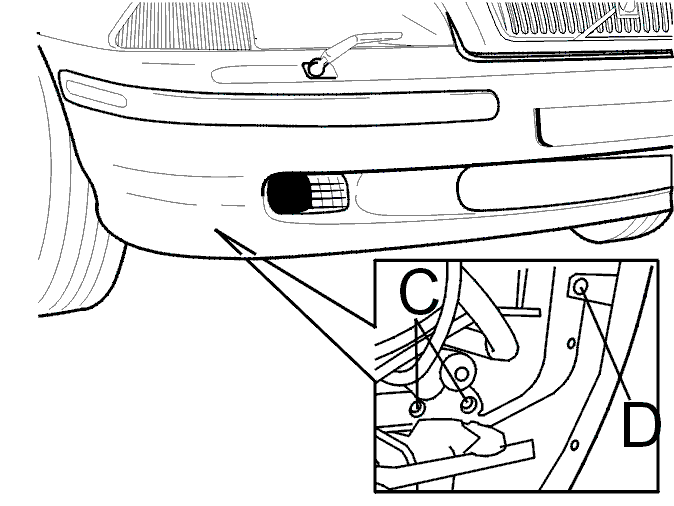

Fig 3: Bumper Bolts And Clips

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

the two screws (C) securing the bumper at the side member. These screws must be removed from underneath the car
the plastic clip (D) on the underneath of the front edge of the bumper.
