Detach the Bumper (One Side)

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

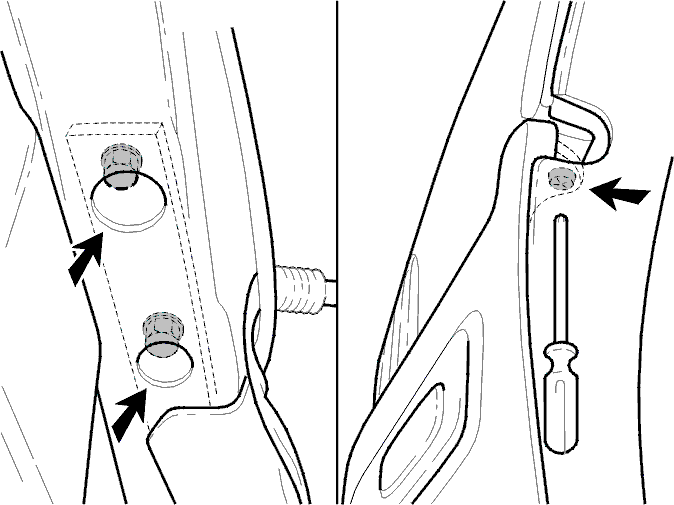

Fig 1: Detaching Bumper (One Side)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the two screws securing the bumper at the side member. These screws are to the side of the headlamps. Remove the screws from underneath the car
Remove the screw in the wheel arch
Remove the screw holding the lower wheel arch guard.
