Replacing the side turn signal flasher on the front fender
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
The bulb and the bulb holder are replaced from the outside.

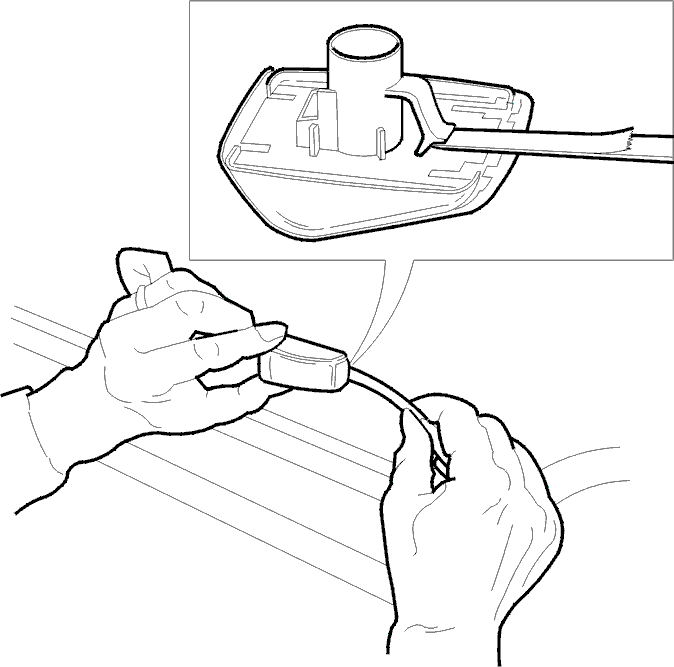

- Remove the bulb holder: Undo the retaining clip at the front edge as shown. Use a feeler gauge.
The feeler gauge should have a thickness of: 0.3 mm.
Stick a piece of tape on the side of the feeler gauge. This is to prevent damage to the paint work. Press the feeler gauge against the front fender.
