Replacing the Rear Side Marker Lamps
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

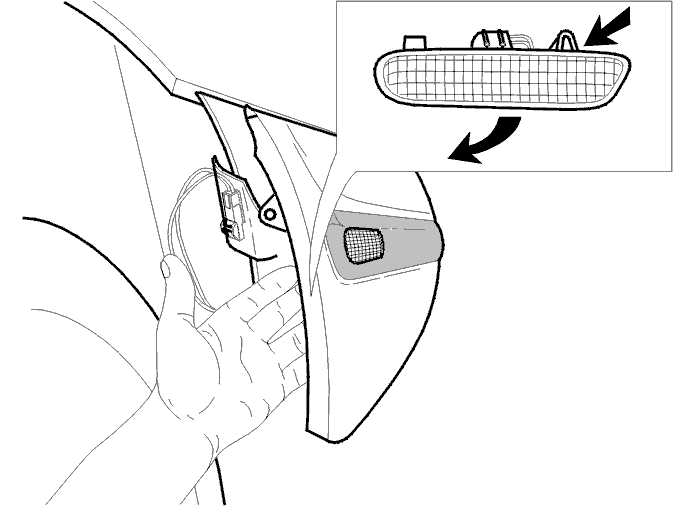

- Pull the bumper out a few centimeters
- Push in the clamp for the side marker lamp at the rear. Remove the side marker lamp.
HINT: The side marker lamp must always be replaced as one unit.
Install in reverse order.
Check that the side marker lamp is functioning.
