Replacing front fog lamps
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of VOLVO CARS OF NORTH AMERICA.

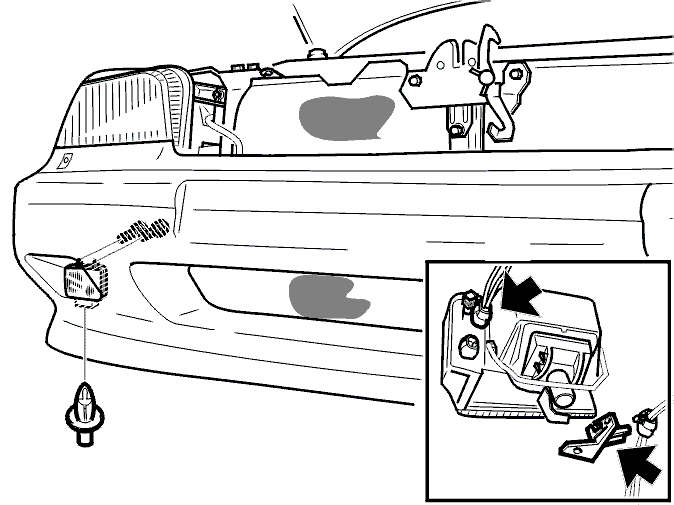

- Remove the splashguard
- Disconnect the connector
- Remove the two screws in the area behind the turn signal lamp and the clip underneath
- Remove the mounting washer if necessary
- Remove the fog lamp bulb from underneath.
