Location of lamps on the combined instrument panel

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

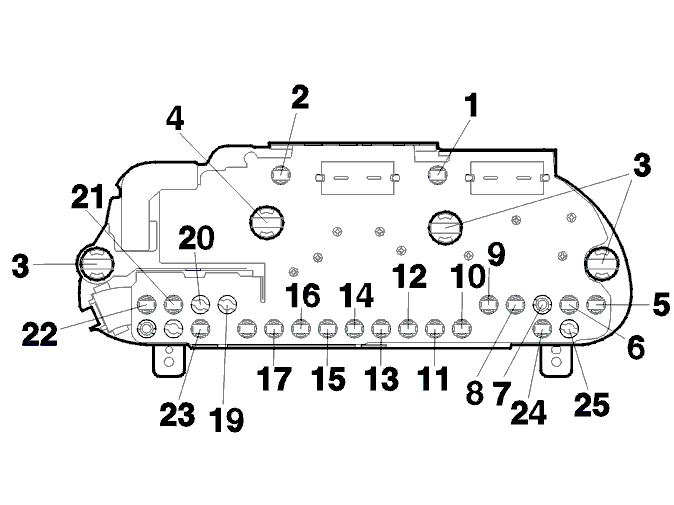

Fig 1: Location Of Lamps On Combined Instrument Panel
GLL115628Courtesy of VOLVO CARS OF NORTH AMERICA.
  1. Left turn signal lamp
  2. Right turn signal lamp
  3. Trip computer
  4. Fuel Level
  5. Front fog lamps on
  6. Fog tail lamp on
  7. Auxiliary low beam lamps/Daytime running lamps on
  8. Bulb defective
  9. High beam on
  10. ABS does not function
  11. Door open
  12. Parking brake applied
  13. Oil pressure too low
  14. Hazard warning lights on
  15. SRS system (Airbag) defective
  16. Warning brake system - too low level in the brake fluid reservoir
  17. Generator defective - the generator (GEN) is not charging
  18. Not used
  19. DSA (extra equipment, not available for diesel turbo)
  20. Diesel only: glow plug on
  21. Fault in engine management system
  22. Immobilizer function
  23. Automatic transmission
  24. Washer reservoir level too low
  25. Trailer attached (different in different markets)
