Replacing the whole tail lamp, 4-door

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

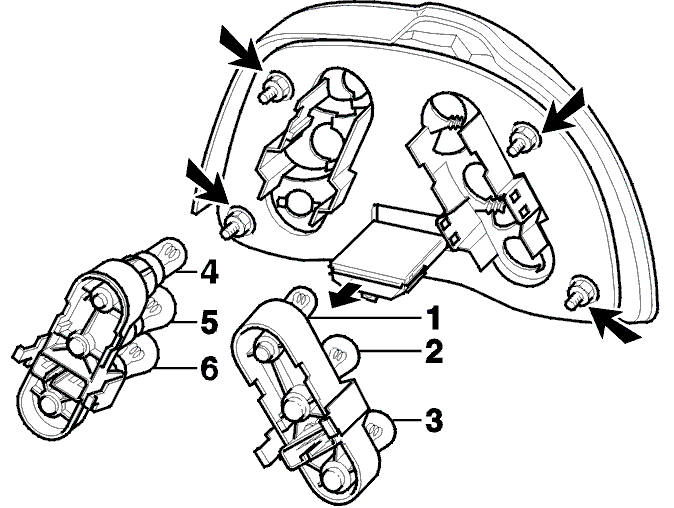

Fig 1: Tail Lamp Bulbs (4-Door)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the two rear lamp fixings.
Remove the lamp control module.
Remove the four mounting screws and remove the lamp by pulling it backwards.

Reinstall in reverse order.

Torque tighten nuts: 7 Nm.

HINT: Check the seals and install during assembly.

Check the function.
