Replace brake lamp

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

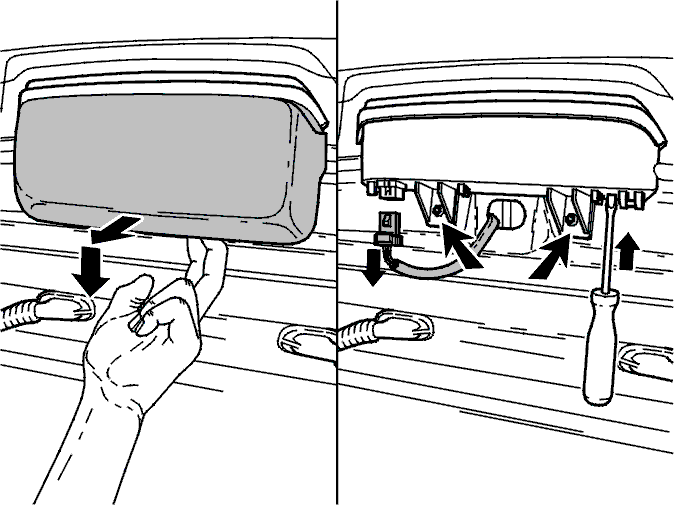

Fig 1: Replacing High Level Stop (Brake) Lamp

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the cover (first pull it backward out of the clips, and then down).
Remove two mounting screws from the bulb holder.
Disconnect the connector.
Remove the bulb holder.

NOTE: If necessary press the bulb holder away from the bodywork with a screwdriver.

Install in reverse order.

Check the function.
