Installing reading lamps (rear)

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

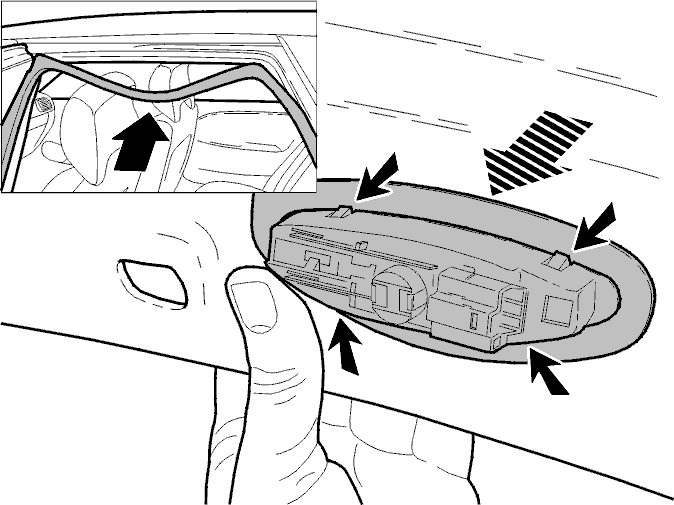

Fig 1: Installing Rear Reading Lamps Or Lenses

Courtesy of VOLVO CARS OF NORTH AMERICA.

Connect the connector. Install the lamps and the cover in the headlining.

Check that the parts are correctly aligned with the protruding edges.

Reinstall the headlining. Install the weatherstrip in the rear door arch.

Check that the lamps function.
