Removing the cable harness
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
Remove:
- the switch
- any protective panels above the headlamp units
- both the protective sockets on the reverse of the lamp unit.
Note the color of the cable to the headlamps.

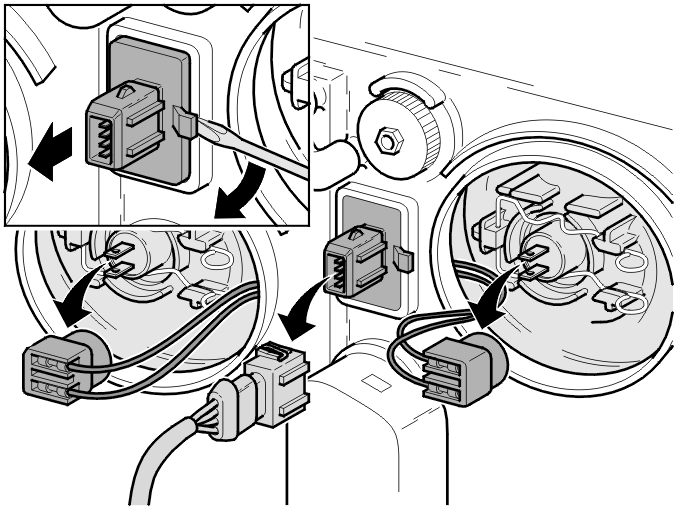

Remove:
- the headlamp connector
- the connector from both the lamps.
Twist the connector out of the housing. Do not damage the headlamp housing.
