Installing the cable harness
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
Clean the headlamp housing where the connector connects.
Check the seal at the connector.

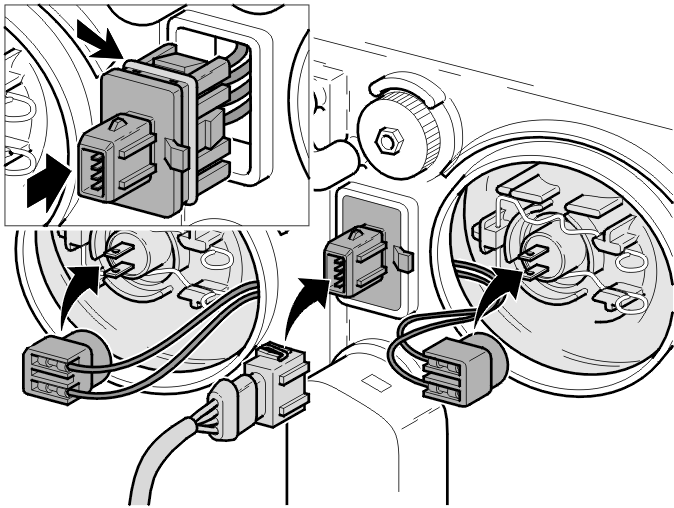

Position the cable harness in the headlamp housing. Connect the cables to the headlamps.
Press the connector into place in the headlamp housing. Check that the lock is working.
Connect both connectors to the lamps.
Check that the headlamps are working.
Install:
- both the protective sockets on the reverse of the lamp unit
- the protective panels above the headlamp units, if applicable.
