Checking the ignition coil

Connect an ohmmeter between the ignition coil terminals 1 and 2 (ignition coil side).

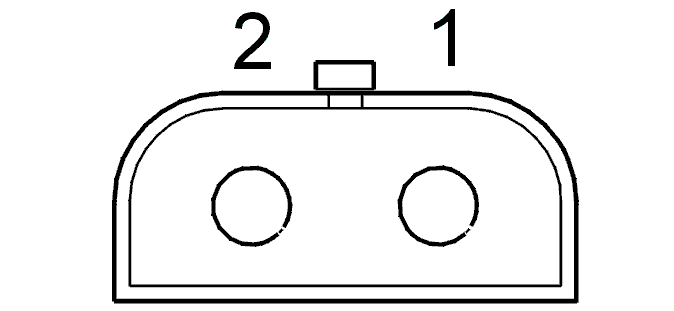

Fig 1: Identifying Terminals 1 And 2

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 2: Identifying Ohmmeter

Courtesy of VOLVO CARS OF NORTH AMERICA.

The ohmmeter should read approximately 0.5 Ω.

• OK

  Refer to Checking the ignition coil

• NOT OK

  Refer to Checking the ignition coil

Try a new ignition coil according to Ignition coil(s), replacement .

• Continue

  Refer to Verification

Fig 1: Identifying Ignition OFF

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Ignition off.

  Check the cable between ignition coil connector terminal 1 and engine control module (ECM) terminal #32 (ECM-38) or terminal #1 (ECM-3A). Check for an open-circuit according to Open-circuit, permanent faults . Check for a short-circuit to ground according to Short-circuit to ground, permanent faults .

  Fig 2: Identifying Outside Temperature Sensor Connector Terminal 2

  Courtesy of VOLVO CARS OF NORTH AMERICA.
  Fig 3: Identifying Ohmmeter

  Courtesy of VOLVO CARS OF NORTH AMERICA.
  Fig 4: Identifying EMS2000

  Courtesy of VOLVO CARS OF NORTH AMERICA.

• Continue

  Refer to Verification

Fig 1: Identifying Ignition ON

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Ignition on.

  Check the cable between ignition coil connector terminal 2 and system relay 2/14 base terminal 3. Check for an open-circuit according to Open-circuit, permanent faults .

  Remedy as necessary.

  Fig 2: Identifying Outside Temperature Sensor Connector Terminal 2

  Courtesy of VOLVO CARS OF NORTH AMERICA.
  Fig 3: Identifying Ohmmeter

  Courtesy of VOLVO CARS OF NORTH AMERICA.

• Continue

  Refer to Verification
