Checking wiring

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

Check the signal cable between engine control module (ECM) terminal #32 (ECM-38) or terminal #1 (ECM-3A) and ignition coil terminal 1. Check for an intermittent open-circuit according to Open-circuit, intermittent faults . Check for an intermittent short-circuit to ground according to Short-circuit to ground, intermittent faults . Remedy if necessary.

Other information

To connect the breakout box, see Connecting the breakout box. EMS 2000 .

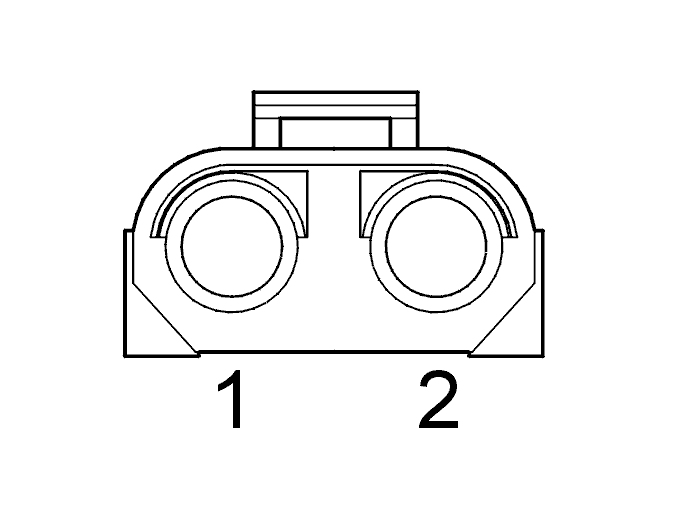

Fig 1: Identifying Outside Temperature Sensor Connector Terminal 2

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 2: Identifying Ohmmeter

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 3: Identifying EMS2000

Courtesy of VOLVO CARS OF NORTH AMERICA.

Continue
Refer to Information
