Location Of Components

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

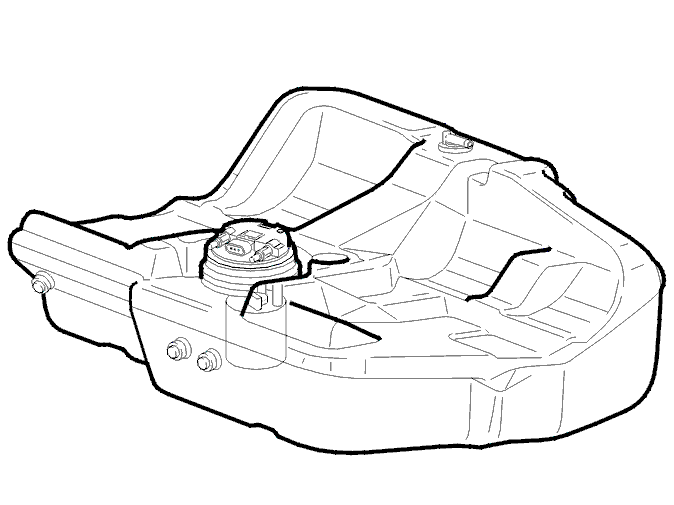

Fig 1: Fuel Pump In Fuel Tank

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fuel pump:

in the fuel tank.

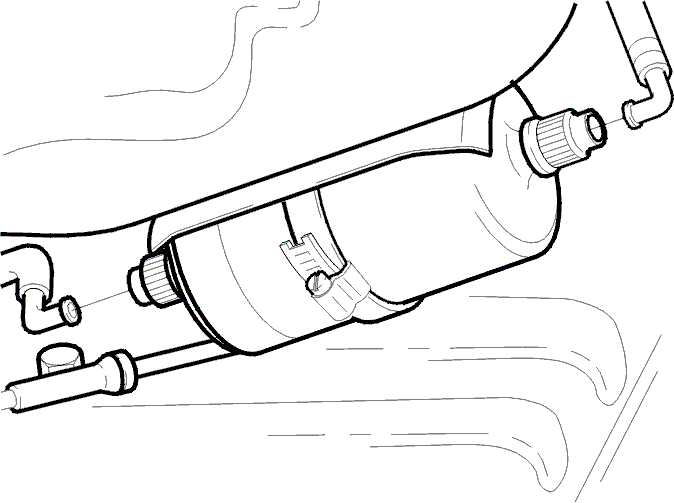

Fig 2: Fuel Filter By Left Rear Wheel

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fuel filter:

by the left rear wheel.

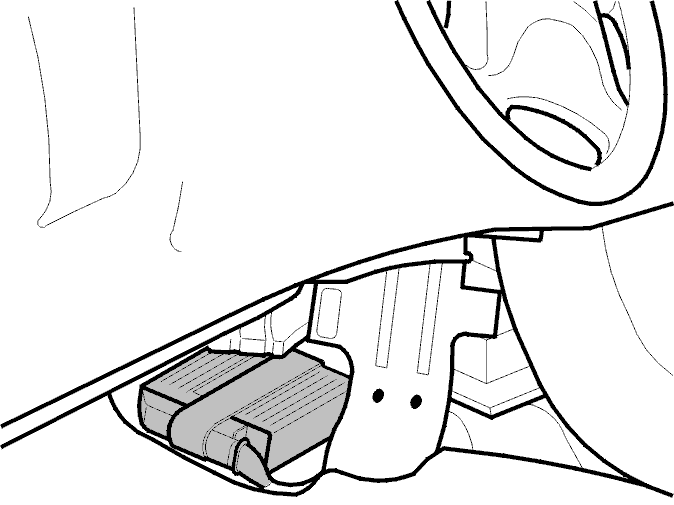

Fig 3: Engine Control Module (ECM) On Center Console Under Dashboard

Courtesy of VOLVO CARS OF NORTH AMERICA.

Engine control module (ECM):

on center console under dashboard.

Fig 4: Data Link Connector (DLC)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Data Link Connector (DLC):

to the left on the center console (left-hand drive cars)

to the right on the center console (right-hand drive cars).

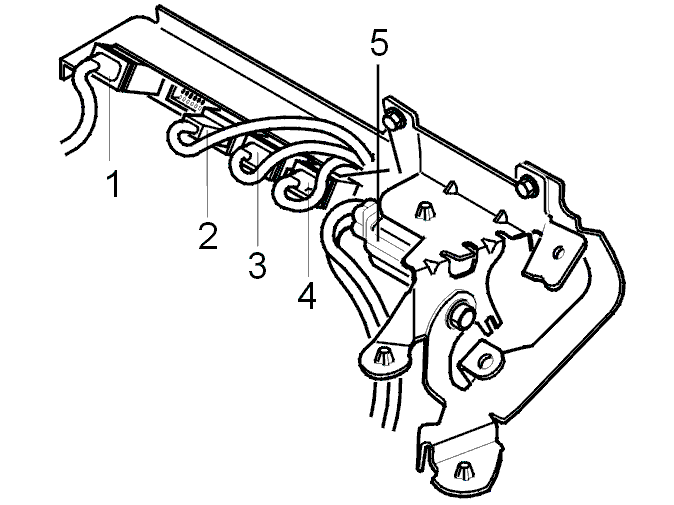

Fig 5: Identifying Connectors On Firewall In Engine Compartment

Courtesy of VOLVO CARS OF NORTH AMERICA.

The bracket for the connectors:

on the firewall in the engine compartment.

1	The connector for the front heated oxygen sensor (HO2S)
2	The connector for the engine speed (RPM) sensor
3	The connector for the knock sensor (KS)
4	The connector for the camshaft position (CMP) sensor
5	The connector for the ignition coils and the camshaft valve

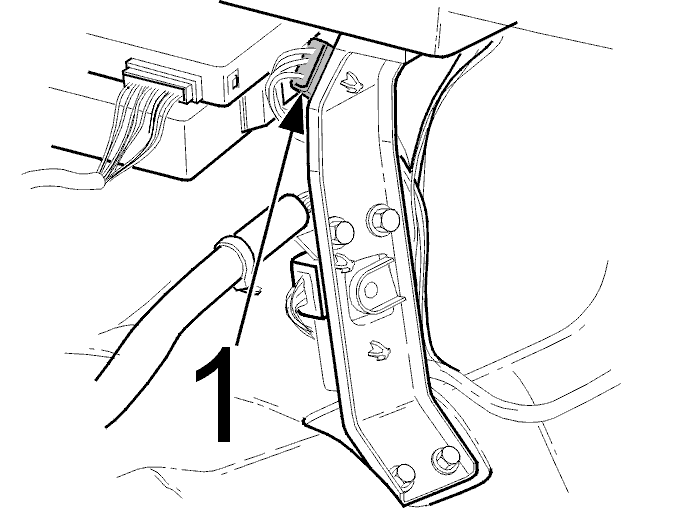

Fig 6: Identifying Connector For Rear Heated Oxygen Sensor (HO2S)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Connector for the rear heated oxygen sensor (HO2S):

behind the rear center console.
