Location Of Components

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Fuel Pump In Fuel Tank

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fuel pump:

in the fuel tank.

Fig 2: Fuel Filter By Left Rear Wheel

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fuel filter:

by the left rear wheel.

Fig 3: Identifying Integrated Relay/Fusebox In Engine Compartment

Courtesy of VOLVO CARS OF NORTH AMERICA.

Relays and fuses:

In the integrated relay/fusebox in the engine compartment.

2/10	Air conditioning (A/C) relay
2/11	Engine cooling fan (FC) relay, low-speed
2/14	System relay
2/15	Engine cooling fan (FC), high-speed (only applies to cars with air conditioning (A/C))

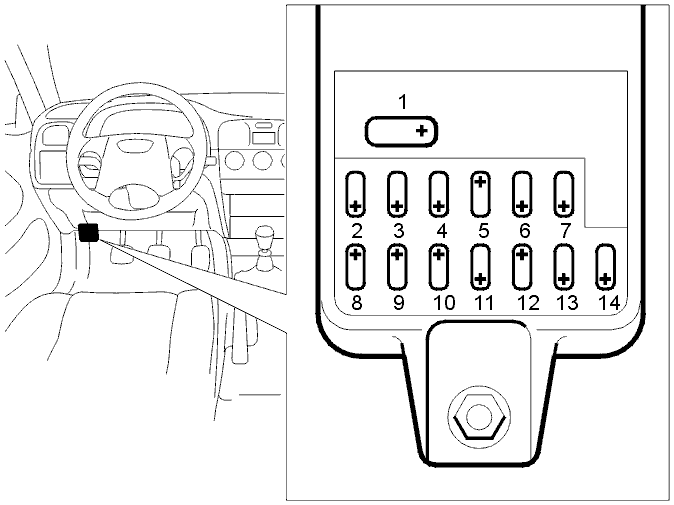

Fig 4: Identifying Integrated Relay/Fusebox In Passenger Compartment

Courtesy of VOLVO CARS OF NORTH AMERICA.

In the integrated relay/fusebox in the passenger compartment.

Fig 5: Engine Control Module (ECM) On Center Console Under Dashboard

Courtesy of VOLVO CARS OF NORTH AMERICA.

Engine control module (ECM):

On the center console under the dashboard.

Fig 6: Data Link Connector (DLC)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Data Link Connector (DLC):

on the left-hand side of the center console (left-hand drive cars); on the right-hand side of the center console (right-hand drive cars).
