Removing the radiator
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
Remove the upper and lower radiator hoses.

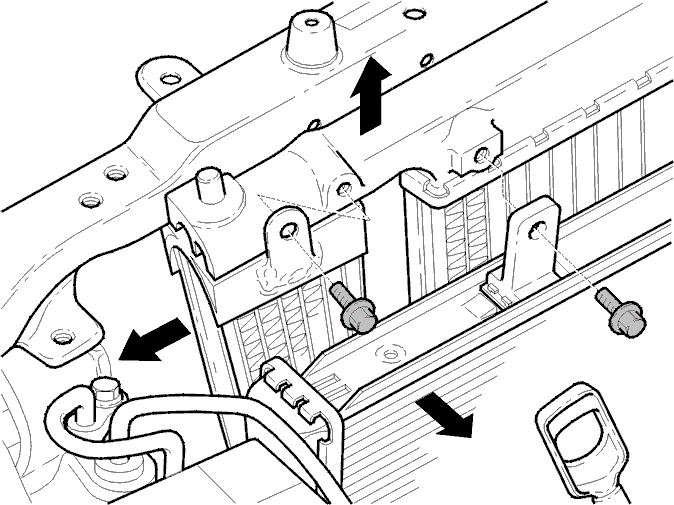

Manual transmissions: Remove the radiator together with the charge air cooler (CAC).
Automatic transmission: Move the charge air cooler (CAC) as far to the right as possible. Press out the oil cooler.
Disconnect the radiator. Remove it above the charge air cooler (CAC) hose connector.
