Replacing the belt tensioner idler pulley

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

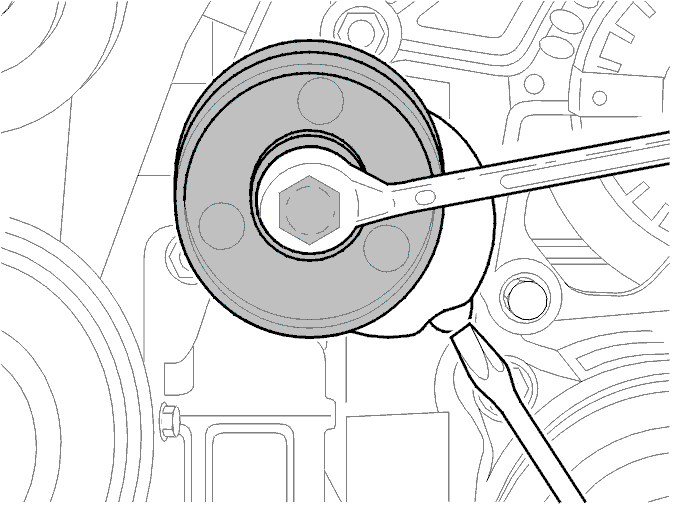

Fig 1: Replacing Belt Tensioner Idler Pulley

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the bolt and the tensioner idler pulley.

Install the new tensioner idler pulley.

Tighten the bolt to 20 Nm .

Check the poly V-belt carefully. Replace the belt if necessary.
