Installing the drive belt
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

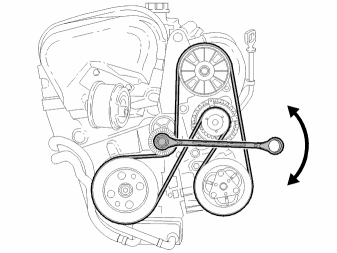

Route the belt around the crankshaft, then around the air conditioning (A/C) compressor, guide pulley, generator (GEN) and power steering pump.
Lift the belt tensioner up. Position the belt on the tensioner (the dotted line shows the routing of the belt in cars without air conditioning (A/C) ).
Check the function
