Installing timing covers

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

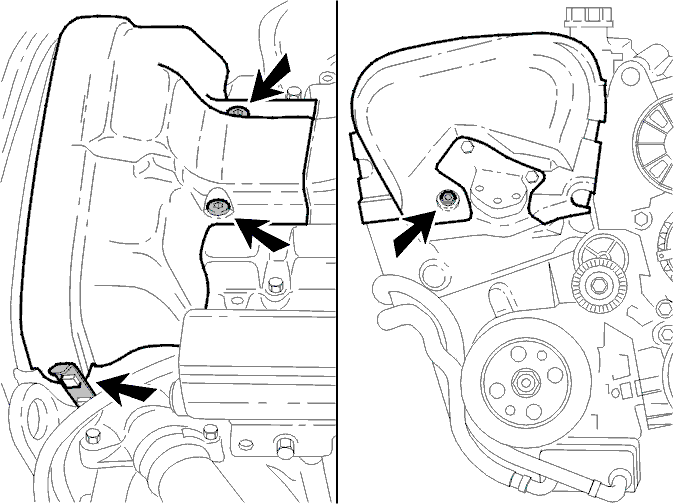

Fig 1: Removing/Installing Timing Covers

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

the lower timing cover.
the front timing cover. Tighten to 12 Nm
the auxiliaries belt.
