Remove at the top side
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

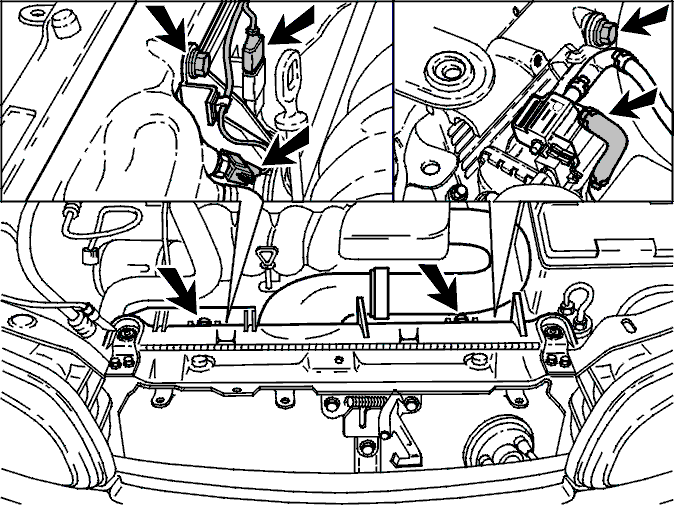

Fig 1: Removing/Installing Front Engine-Bay Cover, EVAP Hose, Intake Air Temperature (IAT) Sensor Connector, Right Side Fan Connector & Bolts
Remove:
- the front engine-bay cover
- mark the EVAP hose and remove it from the canister purge (CP) valve
- the connector from the intake air temperature (IAT) sensor on the charge air cooler (CAC) (undo wiring from the shroud)
- the connector from the right side fan
- the two bolts at the top from the unit.
Raise the car.
