Install fan motor and blade

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

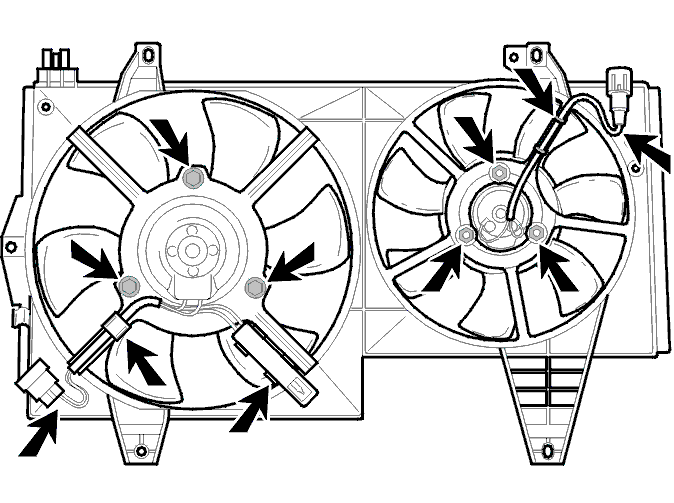

Fig 1: Removing/Installing Fan Blade And Motor

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the fan motor and tighten the bolt or nut to 10 Nm
Route the cables and fit the connectors
Install the fan blade and secure it with the clip or nut. tightening torque 10 Nm
Route the wiring and fit the connectors.
