Install complete unit
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

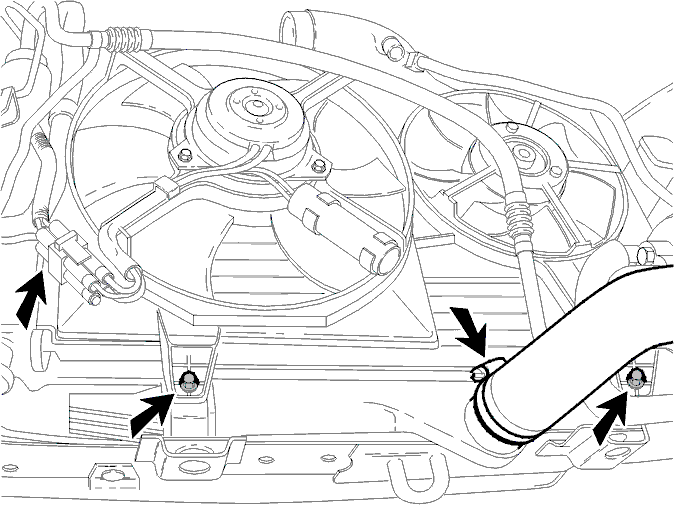

- Install the unit carefully in the correct position at the radiator side
- Install the bolts at the underside. Tighten to 10 Nm
- Clean the connections and connect the charge air cooler (CAC) hose
- Open the clamps and fit the EVAP hose
- Connect the connector.
