VVT Unit/Timing Gear Pulley, Tightening

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

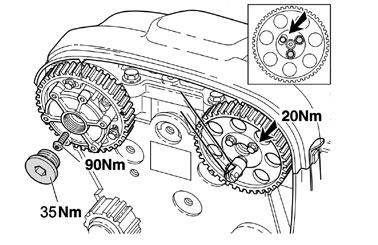

Fig 1: Identifying VVT Unit/Timing Gear Pulley

Courtesy of VOLVO CARS OF NORTH AMERICA.

Tighten the center screw on the timing gear pulley with VVT. Tighten to 90 Nm .

Install the plug. Tighten to 35 Nm .

Install the third screw on the timing belt pulley without VVT. Tighten with 20 Nm .

Remove the adjustment tools.
