Throttle cable and the air intake hose on the throttle body (TB), securing

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

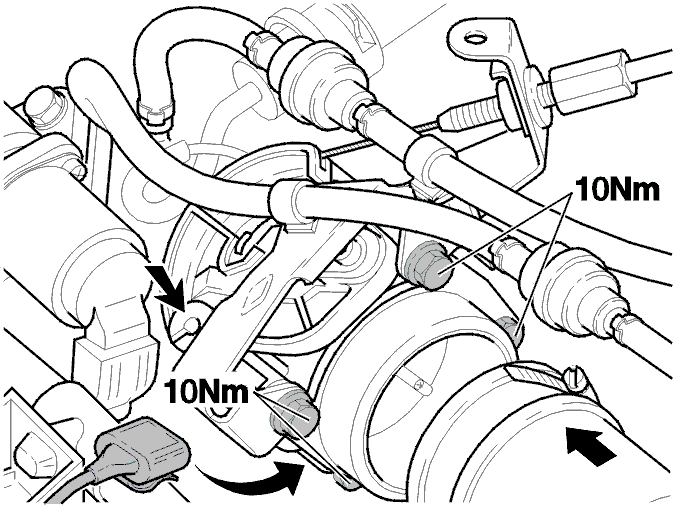

Fig 1: Securing Throttle Cable And Air Intake Hose On Throttle Body (TB)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Clean the air intake hose and the throttle body (TB)
Install the hose. Tighten the clamp
NOTE: Ensure that the clamp never comes into contact with the throttle pulley in the idling or wide open throttle (WOT) positions.
Connect the idle hose to the idle air control (IAC) valve. Use a new hose clamp.
