Power steering pump, installing
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

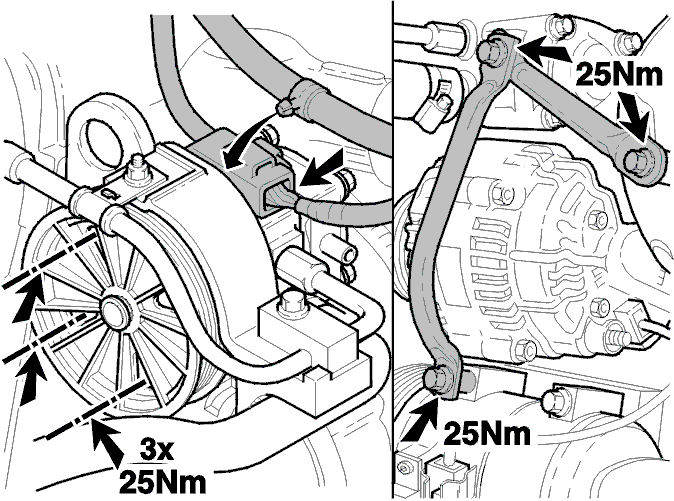

- Install the power steering pump and the screws
- Loosely install the support bracket between the generator (GEN) and the intake manifold. Install the lower bracket
- Tighten the screws. Tighten to 25 Nm
- Secure the cable in the bracket
- Tighten the support bracket between the generator (GEN) and the intake manifold. Tighten to 25 Nm .
- Tighten the lower screw on the support bracket. Tighten to 25 Nm .
