Hoses and wiring, routing and connecting

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

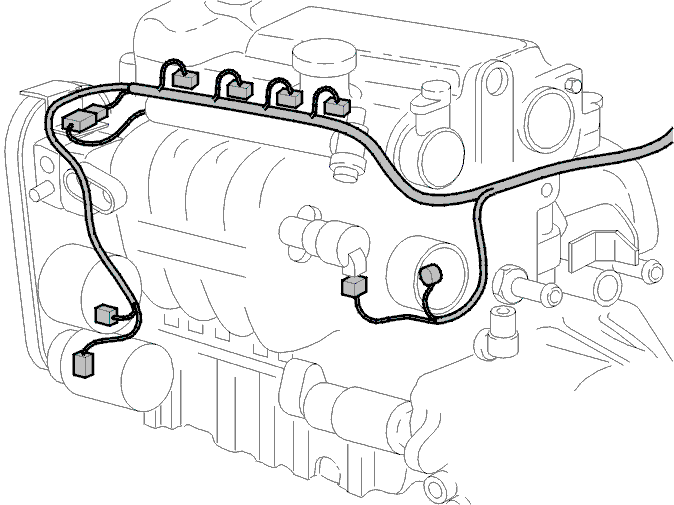

Fig 1: Engine Hoses/Wiring, Routing And Connecting

Courtesy of VOLVO CARS OF NORTH AMERICA.

Connect:

The injectors. Secure the wiring
The wiring for the ignition coil and the ground lead
The cable mounting on the engine. Tighten the mounting. Tighten to 10 Nm
The positive crankcase ventilation (PCV) valve
The throttle position (TP) sensor and the idle air control (IAC) valve.
