Front-rear member, installing
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
Install heat shield.

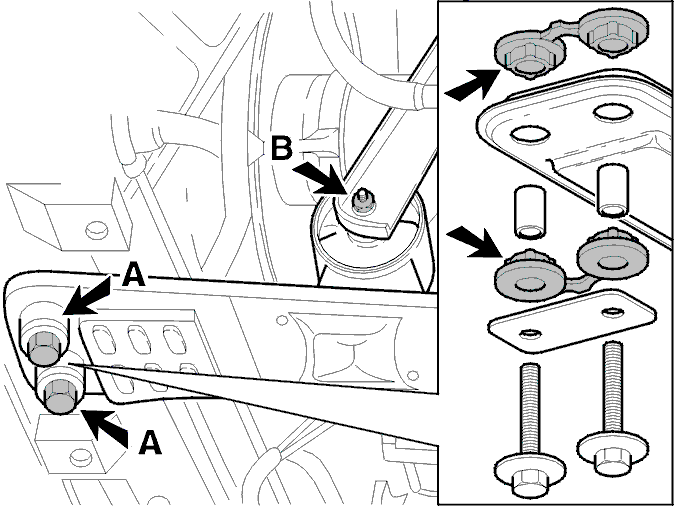

Install the front-rear member. Insert the two screws (B) through the engine pads. Tighten the two screws.
Install the front and rear engine screws (A). Tighten the screws. Tighten to 69 Nm .
NOTE:
Position the rubber elements in the correct positions as shown. The position of the mounting points for the front-rear member must be the same at both the front and the rear.
Slacken off the screw (B) for the front engine pad. First tighten the screw for the rear engine pad. (Tighten to 55 Nm .) Then tighten the screw for the front engine pad. (Tighten to 55 Nm .).
