Engine mounting on transmission side, installing

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

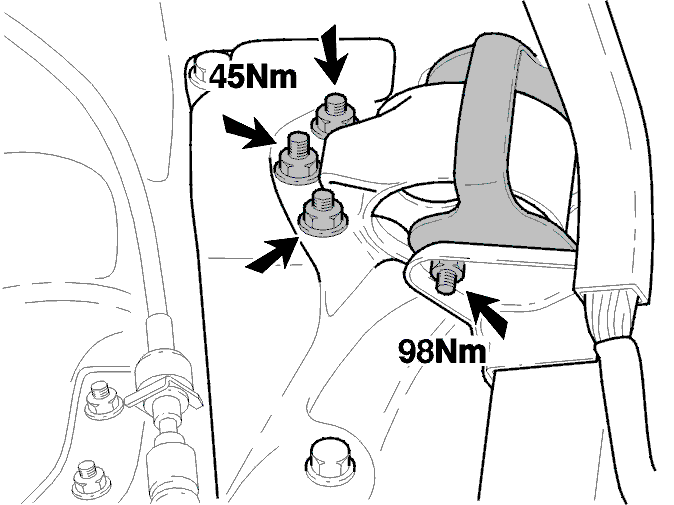

Fig 1: Installing Engine Mounting On Transmission Side

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the mounting on the transmission. Tighten to 45 Nm .

NOTE: Ensure that the rubber protectors are correctly positioned.

Install the screw and the nut on the engine mounting in the body
Remove the lifting equipment
Tighten the screws for the engine mountings on the left and right-hand sides. Tighten to 98 Nm .

Return the hood to the normal position.
