Drive shaft right-hand in transmission, installing
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

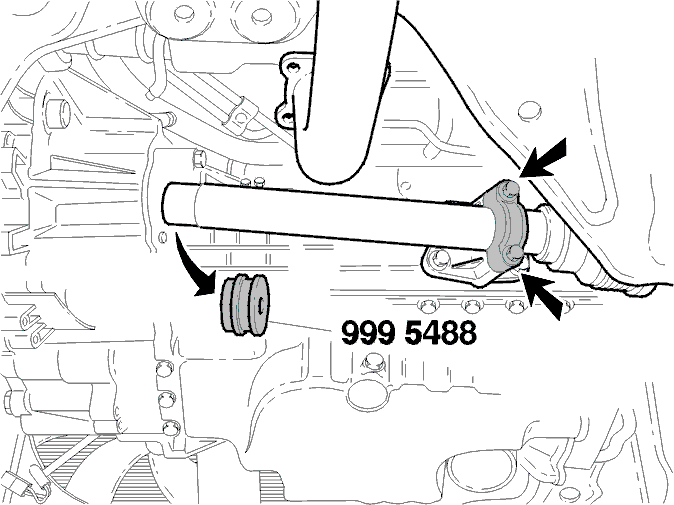

Remove special tool 9995488 from the transmission.
Install the drive shaft in the transmission and the bearing.
Finger tighten the bearing cap.
Secure the wheel spindle on the spring strut. Install the screws and nuts.
Tighten the bearing cap screws. Tighten to 25 Nm .
