WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

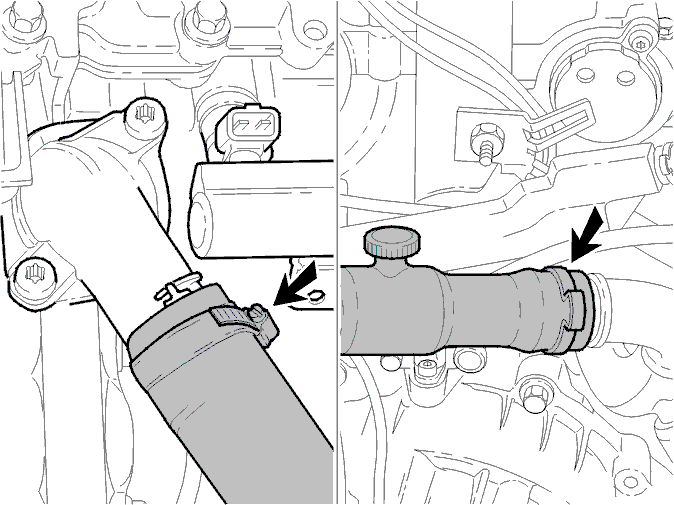

Fig 1: Installing Coolant Hoses
Courtesy of VOLVO CARS OF NORTH AMERICA.
Install the expansion tank. Tighten the clamp.
Tighten the cap nut on the oil cooler pipe connector on the transmission. Tighten to 30 Nm
.
