Install lifting beam and lifting lug

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

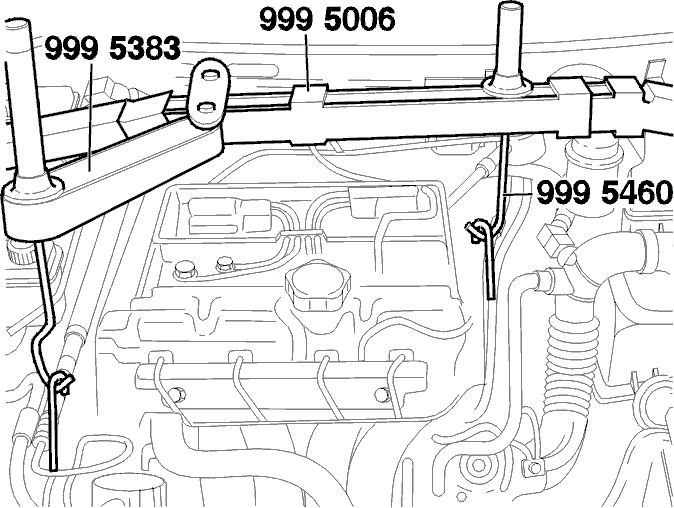

Fig 1: Installing Lifting Beam And Lifting Lug
GLL114166Courtesy of VOLVO CARS OF NORTH AMERICA.
NOTE: Remove the nut from the body support.

Position the lifting beam 9995006 centrally above the engine and install the lifting lugs 9995460 in the lifting eyes.

Install the extra support 9995383 (if necessary).

Lift the engine up a few mm at the front.
