Install engine suspension on timing gear side

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

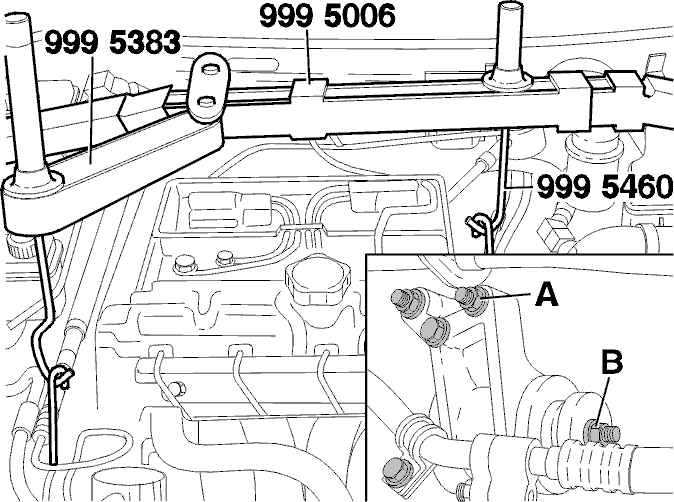

Fig 1: Installing Engine Suspension On Timing Gear Side

Courtesy of VOLVO CARS OF NORTH AMERICA.

Position the support on the engine and tighten the bolts (A) to 67 Nm
Loosely install the bolts in the body support
Remove the lifting beam 9995006
Tighten the body support (B) nut to 98 Nm .

Test drive engine

Start the engine and check function.

Install the right engine compartment cover and headlight unit cover.
