WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

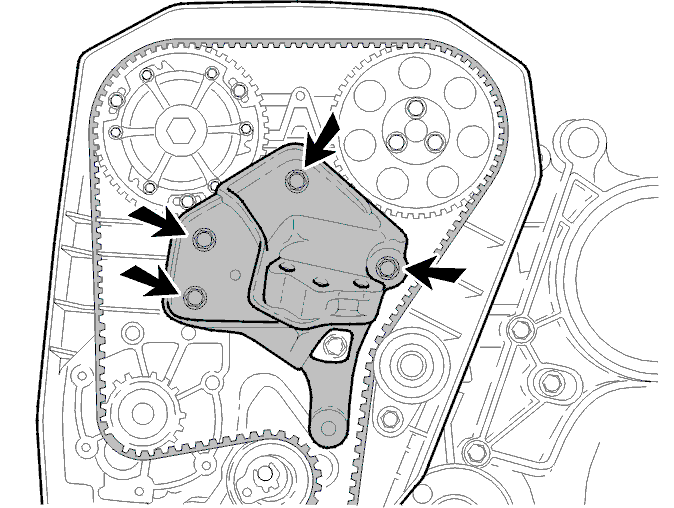

Fig 1: Installing Engine Bracket
Courtesy of VOLVO CARS OF NORTH AMERICA.
Clean mounting pin, position bracket and install bolts. Tightening torque 35 Nm + 75°
.
