Installing the lifting beam and lifting hook

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

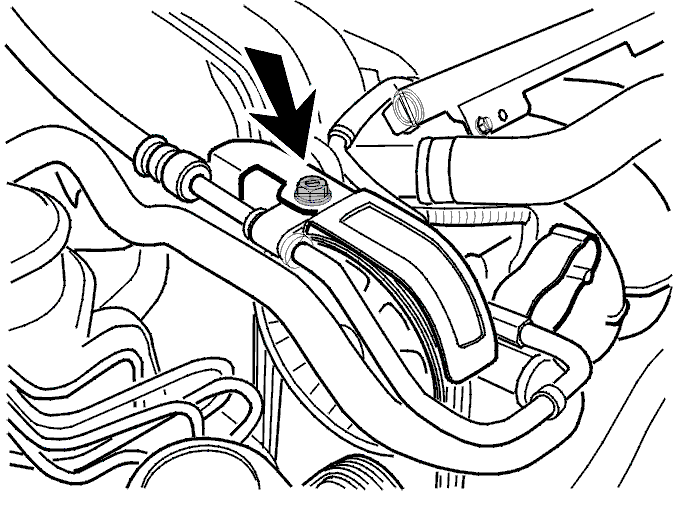

Fig 1: Removing/Installing Metal Bracket For Servo Hose

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the metal bracket for the servo hose from the rotation protection for the auxiliaries belt.

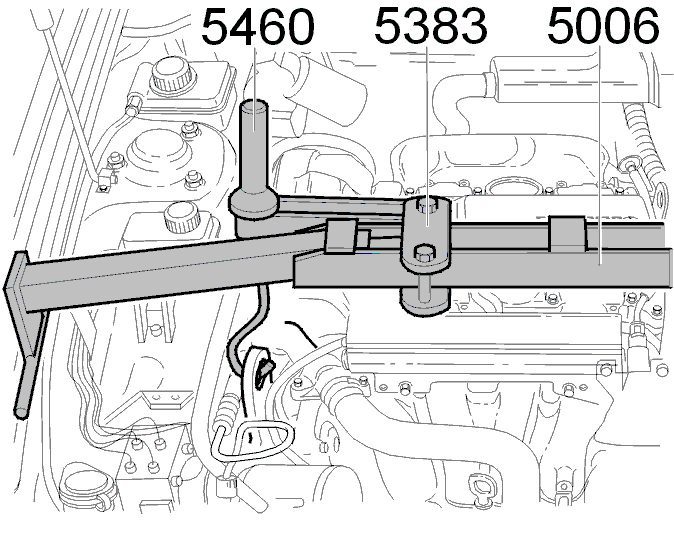

Fig 2: Installing Lifting Beam And Lifting Hook

Courtesy of VOLVO CARS OF NORTH AMERICA.

Position lifting beam 9995006 slightly in front of the front lifting eyelet for the engine. Use lifting arm 9995383 and lifting hook 9995460 to raise the front of the engine a few millimeters.
