Installing the camshaft cover

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

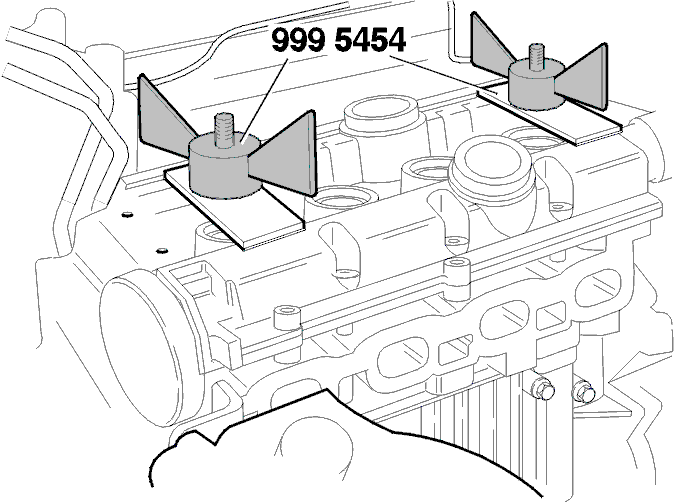

Fig 1: Removing/Installing Camshaft Cover And Cylinder Head

Courtesy of VOLVO CARS OF NORTH AMERICA.

Lubricate the camshaft lobes, the camshaft bearing surfaces and the top of the valve lifters.

Install the camshaft cover.

Install 2 press tools 9995454 .

Tighten the camshaft cover screws alternately, keeping it parallel to the cylinder head using the press tools.

Install the intake manifold and lifting eyes, tighten screws from the middle and outwards.

Remove the press tools.

Install:

the variable valve timing (VVT) solenoid. Use a new gasket.
the spark plugs. Tighten to 30 Nm .
