Installing components

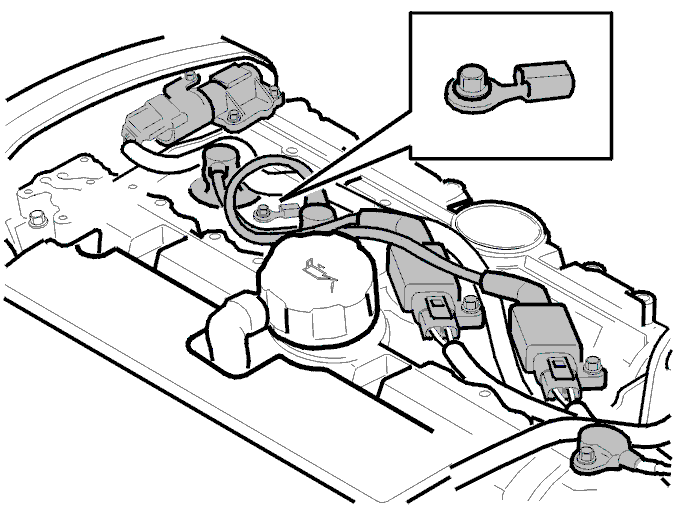

Fig 1: Removing/Installing Cable Harness

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

• the ignition coils and ignition cables according to earlier markings
• the connectors on the variable valve timing valve and ignition coils
• the ground lead for the ignition coils
• the camshaft position (CMP) sensor.

Place the cable duct and cable harness in position.

Install:

• the screws for the cable duct on the rear edge of the cylinder head and throttle body (TB) bracket
• the bracket between the intake manifold and the power steering pump
• the connectors for the injectors
• the connector for the engine coolant temperature sensor
• the air preheating hose between the air cleaner (ACL) and the heat deflector plate for the exhaust manifold
• the auxiliaries belt
• the pipe screw for the water-heated crankcase ventilation
• the upper section of the air cleaner (ACL) housing and hose
• the EVAP hose connection to the mass air flow (MAF) sensor hose
• the connector for the mass air flow (MAF) sensor
• the turbocharger (TC) control valve on the air cleaner (ACL) housing
• the brake servo vacuum hose
• the throttle cable
• the inlet hose between the mass air flow (MAF) sensor and throttle body (TB)
• the front timing cover
• the cover over the ignition coils
• the upper timing cover
• the cover over the throttle body (TB)
• the cover over the injectors.
