Installing the cylinder head: Check

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

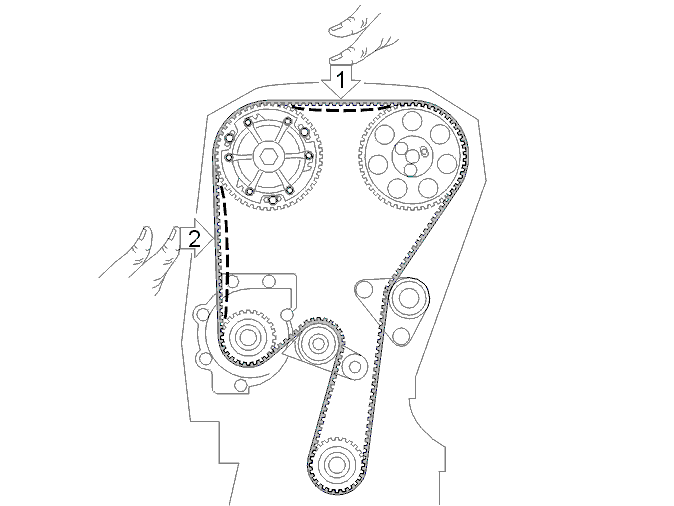

Fig 1: Checking Indicator On Tensioner Moves Easily

Courtesy of VOLVO CARS OF NORTH AMERICA.

Press the belt to check that the indicator on the tensioner moves easily
Position the upper timing cover.

Fig 2: Removing/Installing Timing Covers & Positioning Engine According To Marking

Courtesy of VOLVO CARS OF NORTH AMERICA.

Turn the crankshaft two turns. Check that the markings on the crankshaft and camshaft pulley correspond.
NOTE: Check that the indicator on the belt tensioner is within the marked area.
Remove the upper timing cover.
