Aligning the crankshaft

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

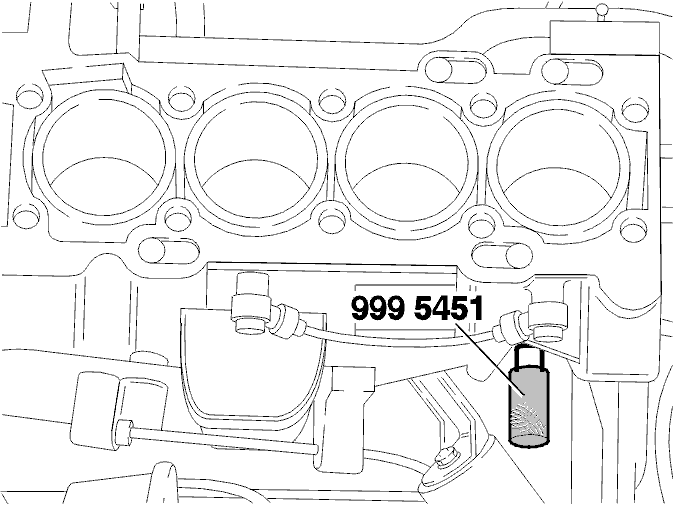

Fig 1: Installing Gauge 9995451

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the blind cover plug.

Turn the crankshaft clockwise slightly to avoid the adjustment tool being in the wrong position.

Install adjustment tool 9995451 . Ensure that the adjustment tool bottoms out against the cylinder block.

Turn the crankshaft back counter-clockwise until it stops against the drift.

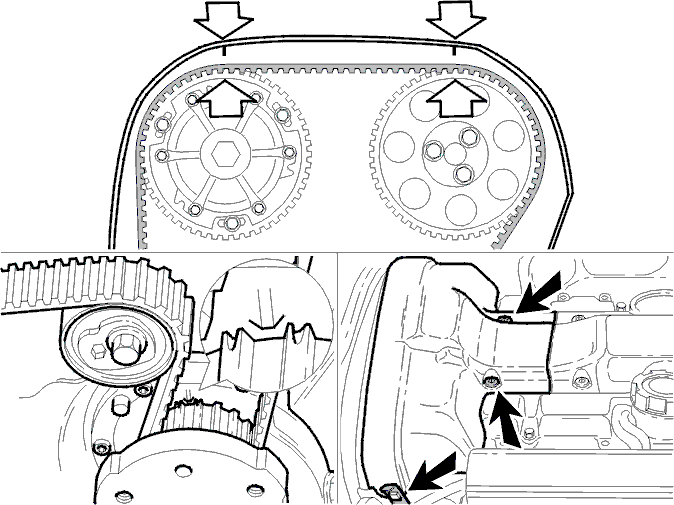

Fig 2: Removing/Installing Timing Covers & Positioning Engine According To Marking

Courtesy of VOLVO CARS OF NORTH AMERICA.

Check that the marking on the crankshaft timing gear pulley corresponds with the marking on the oil pump.
