Cleaning the gasket face
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

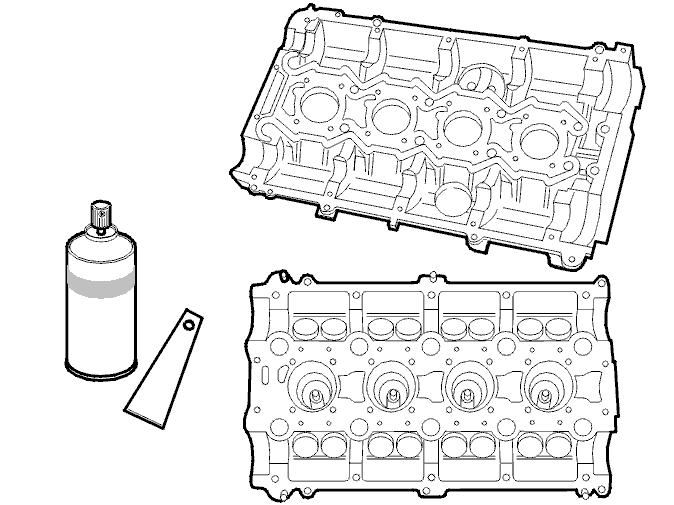

Clean the gasket faces for:
- the coolant bypass channel
- the intake manifold
- the cylinder block
- camshaft cover.
When replacing or machining the cylinder head, clean the gasket faces for:
- the manifold. Check that the studs are tightened
- thermostat housing.
Blow the oil ducts clean.
CAUTION:
Do not use a metal scraper. Use a soft putty knife and gasket solvent 1161340-3 if necessary. The surfaces must be completely clean in order to form a complete seal.
WARNING:
Use a fume hood or extractor when using gasket solvent.
