Installing the camshaft timing gear pulley

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

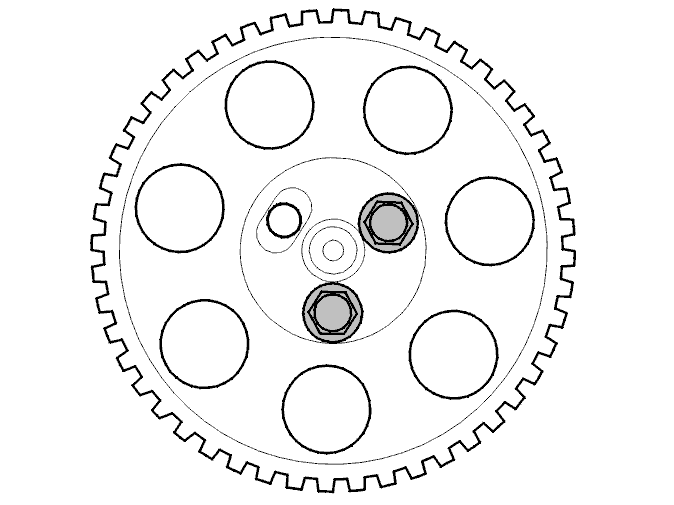

Fig 1: Installing Timing Gear Pulley

Courtesy of VOLVO CARS OF NORTH AMERICA.

Timing gear pulleys without variable valve timing (VVT):

install the upper timing cover
install the timing gear pulley without variable valve timing on the camshaft. Use the two screws positioned so that the markings on the timing gear pulleys and upper timing cover correspond. Do not tighten.

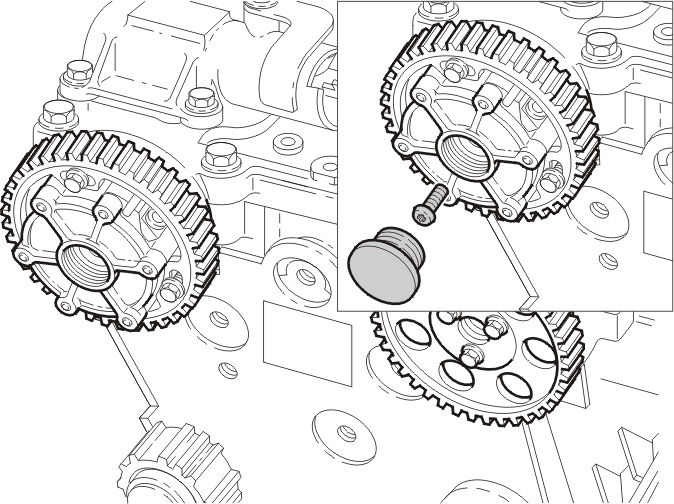

Fig 2: Removing/Installing Plug And Center Screw At Variable Valve Timing Unit

Courtesy of VOLVO CARS OF NORTH AMERICA.

Timing gear pulleys with variable valve timing (VVT):

Install the timing gear pulley using the center screw on the camshaft. Ensure that the markings on the timing gear pulleys/upper timing cover correspond. Do not tighten.
