Replacing retaining ring
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
Remove the retaining ring with a screwdriver.
NOTE:
Do not damage the contact faces. Note the position of the retaining ring relative to the retaining ring holder.
Oil the retaining ring mating lips.

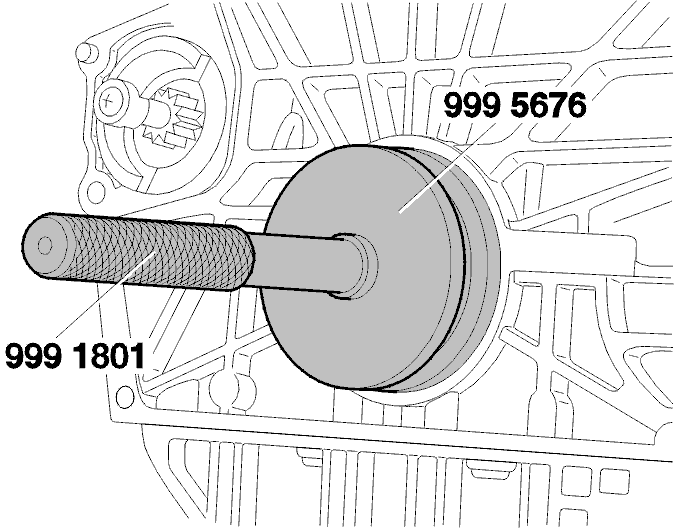

Install the retaining ring using the installation kit 9995676 and the universal handgrip 9991801 .
Tap the retaining ring in until the die touches the crankshaft.
