Replace front engine mounting bolster

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

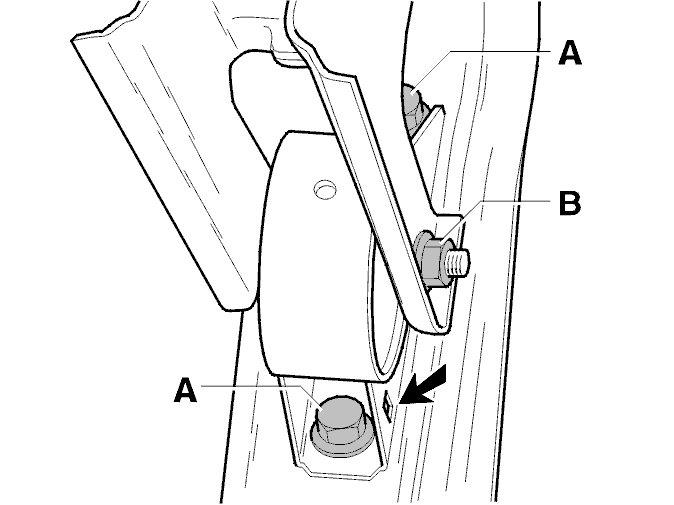

Fig 1: Removing Front Engine Mounting

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the nut and the bolt from the engine mounting bolster.

Remove the two mounting bolts and remove the mounting bolster.

Install the new engine mounting bolster (Position the hole towards the front of the car).

Tighten the:

Two bolts (A) on the longitudinal member to 35 Nm .
Central bolt (B) in the bolster to 55 Nm .
