Removing the rear engine mounting

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

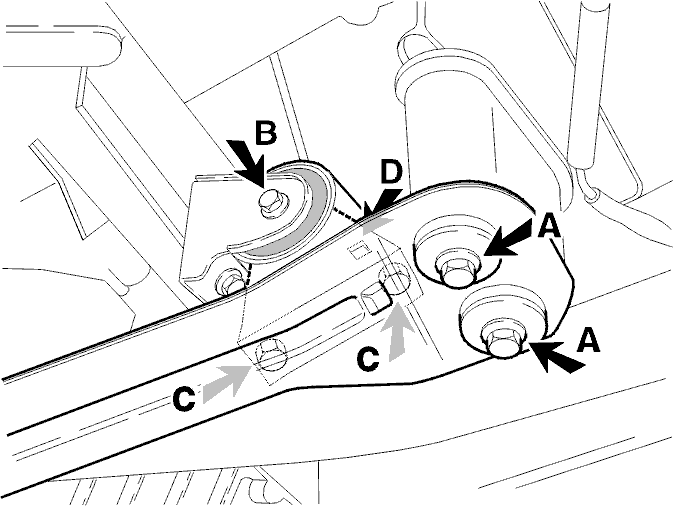

Fig 1: Removing/Installing Rear Engine Mounting

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

the parallel strut for the front suspension
the heat deflector plate
the screws (A) from the mounting in the car body
the nut and screw (B). Slowly pull the engine mounting downwards
the screws (C)
the engine mounting.
