Installing the left-hand engine mounting

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

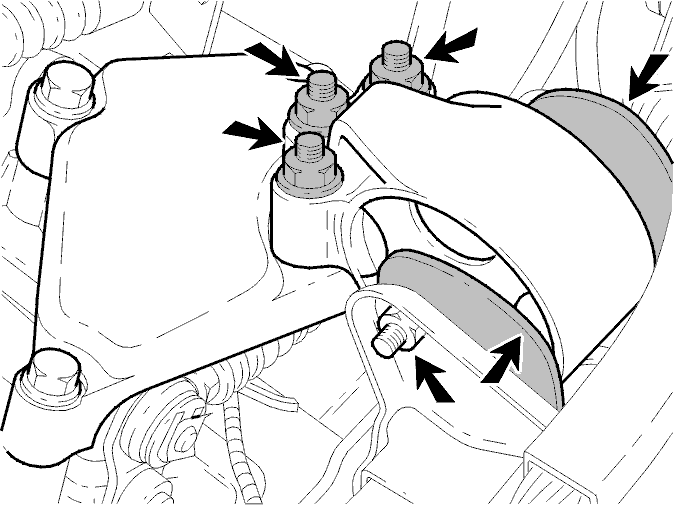

Fig 1: Removing/Installing Left-Hand Engine Mounting

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

the engine mounting. Correctly position the rubber guard
the nuts on the transmission bracket. Tighten to 45 Nm
the screw and nut. Tighten by hand.

Remove the lifting beam and lifting hook.

Tighten to 98 Nm .

Install the air cleaner. See Installing The Air Cleaner (ACL) Housing .
