Removing the power steering pump from the engine
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

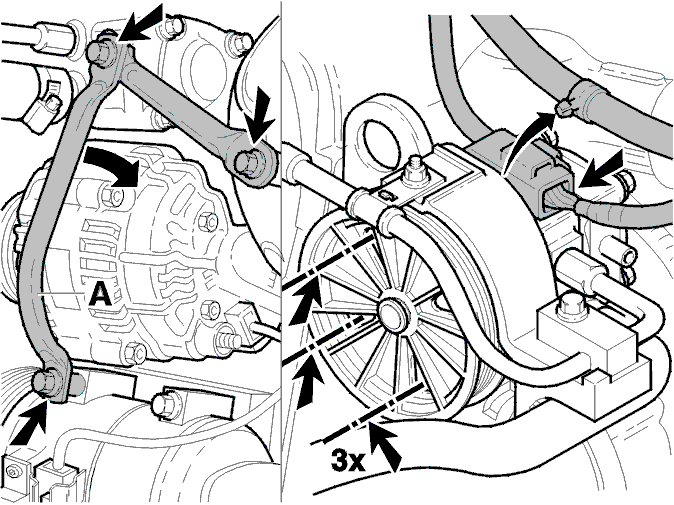

- Remove the brackets between the power steering pump and the intake manifold and the lower bracket
- Remove the Poly V-belt
- Remove the mounting screws between the spokes on the pulley
- Remove the oil reservoir from the bodywork. Release the hose from the clips.
- Remove the power steering pump. Place the pump to one side.
