Removing the gear selector mechanism cables
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
Automatic transmission

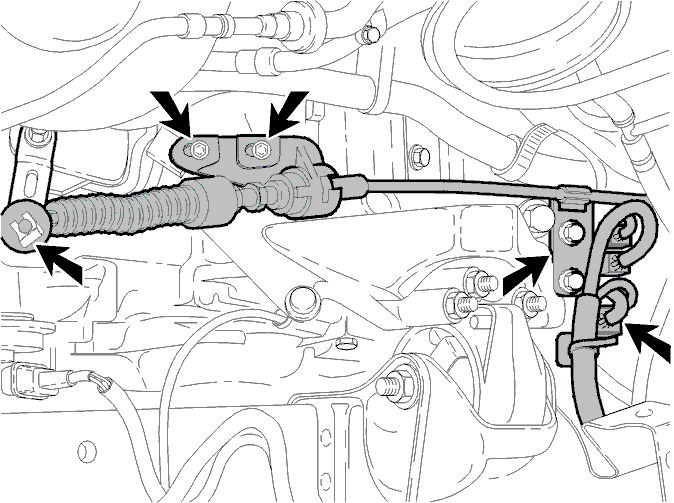

Remove: the gear selector cable mountings.
Disconnect the connector.
Remove the gear selector cable from the gear selector bevel arm on the transmission.
Remove the connectors from the transmission:
- Remove the gear selector cable from the transmission
- The ground lead from the transmission
- Remove the bracket for the connector from the transmission
- Separate the connector.
