Removing the engine with the transmission
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

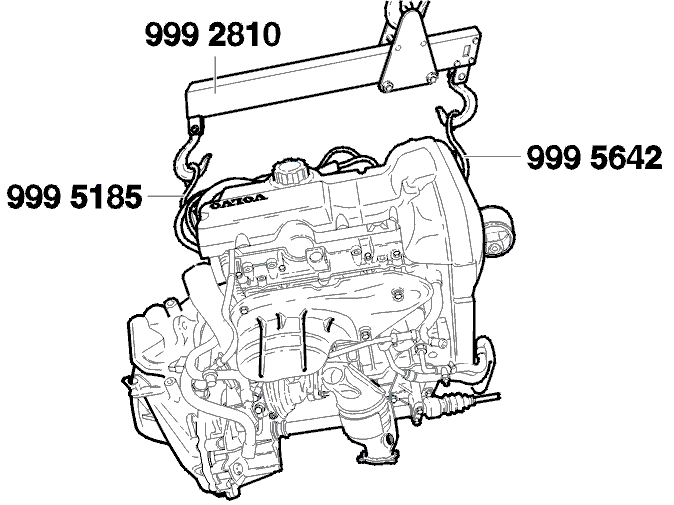

Hang lifting hooks 9995185 and 9995642 on 9992810 .
Raise the lifting equipment until it takes the strain off the engine.
Remove the engine mounting on the transmission side:
- Remove the nut and the screw
- Remove the three screws. Remove the transmission bracket.
Remove the engine mounting from the upper timing belt cover.
NOTE:
Check carefully that the driveline is clear of the bodywork and other optional equipment. Turn the clamp at the oil cooler if necessary.
Lift out the engine.
Adjust the lifting equipment continuously throughout the lift.
Return the hood to the normal position.
