Removing the air conditioning (A/C) compressor
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

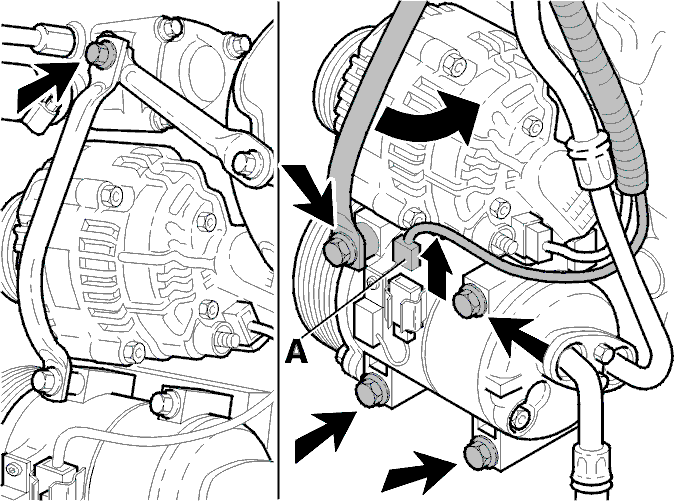

Unscrew the upper screw from the mounting for the power steering pump.
Remove:
- the connector (A)
- the four mounting screws
- the compressor. Turn the compressor upwards as far as possible.
- Move the mounting to one side.
Tie the front edge of the compressor to the car body.
NOTE:
Do not damage the A/C hoses and pipes.
