Transmission, removing

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

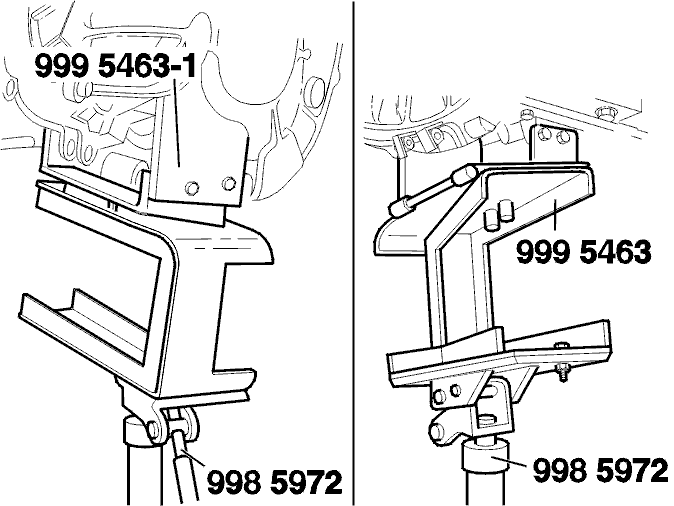

Fig 1: Removing Transmission Using Mobile Jack 9995972

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the torque converter screws. Remove the screwed joint between the transmission and the engine where the flywheel cover is secured to the cylinder block.

WARNING:

When removing the transmission, use mobile jack 9995972 with fixture 9995463 to support the transmission and prevent damage.
